SPECIFICATIONS

Battery: Lead acid/LiFePO4 lithium battery

Free installation service: Yes

Installation method: ground mount

Inverter: Single-phase/split-phase/three-phase

Model: XHY-OG10KW

Nombre de la marca: Ninguno

OEM/ODM: acceptable

Origen: CN(Origen)

Output voltage (volts): 220/230

Product name: Household hybrid solar energy storage system

Producto químico muy preocupado: Ninguno

Solar panel type: monocrystalline silicon

Tipo: Otro

Working hours (hours): 24 hours, 24 hours

controller type: PWM, MPPT

country of origin: Anhui, China

output frequency: 50/60HZ

output wave: pure sine wave

protect: Overload, low voltage, and overvoltage (alarm)

purpose: Home

solar panel: Monocrystalline Perc/Topcon Solar Panels

Warranty

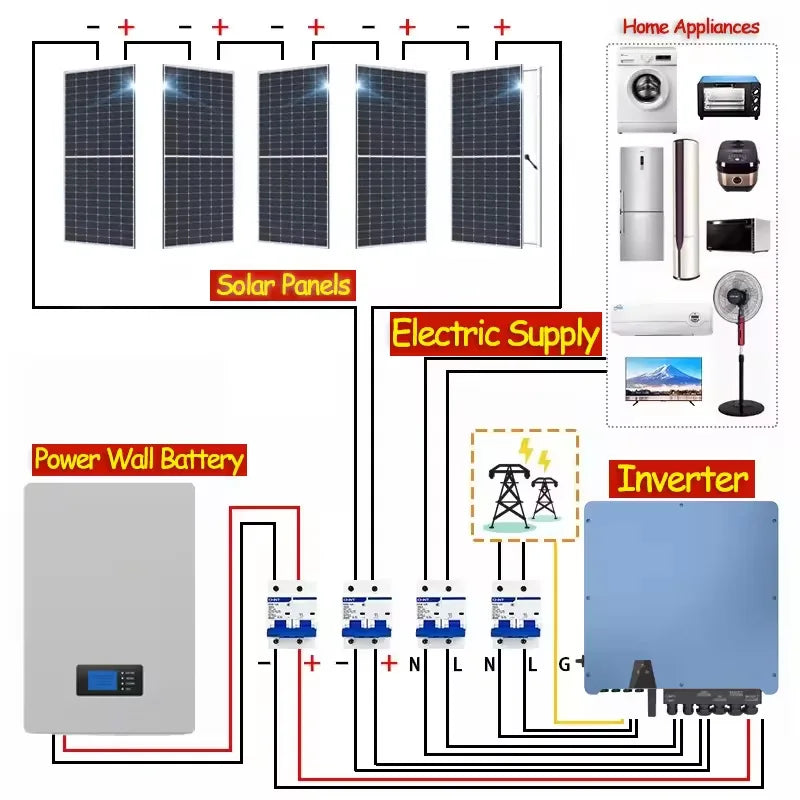

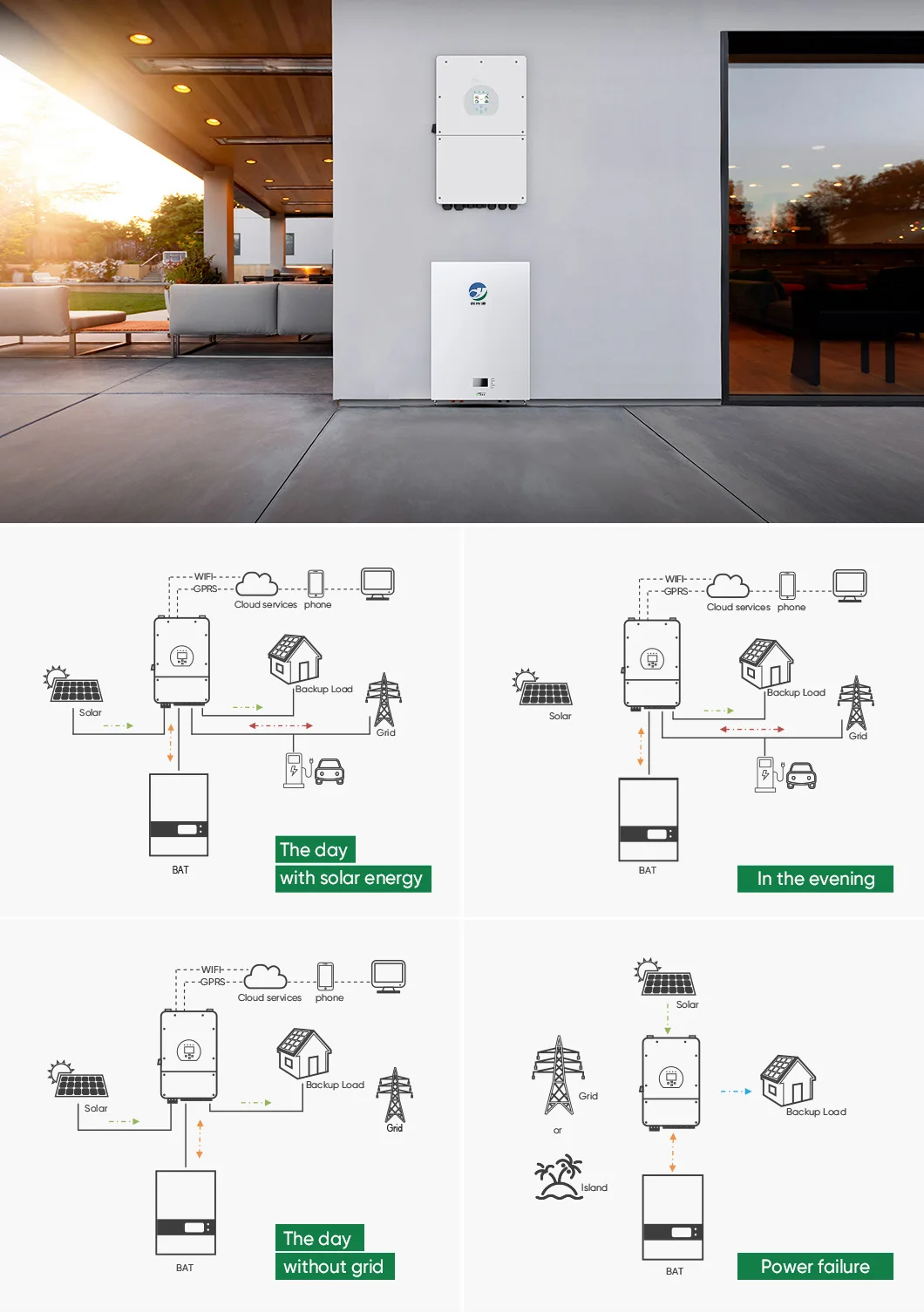

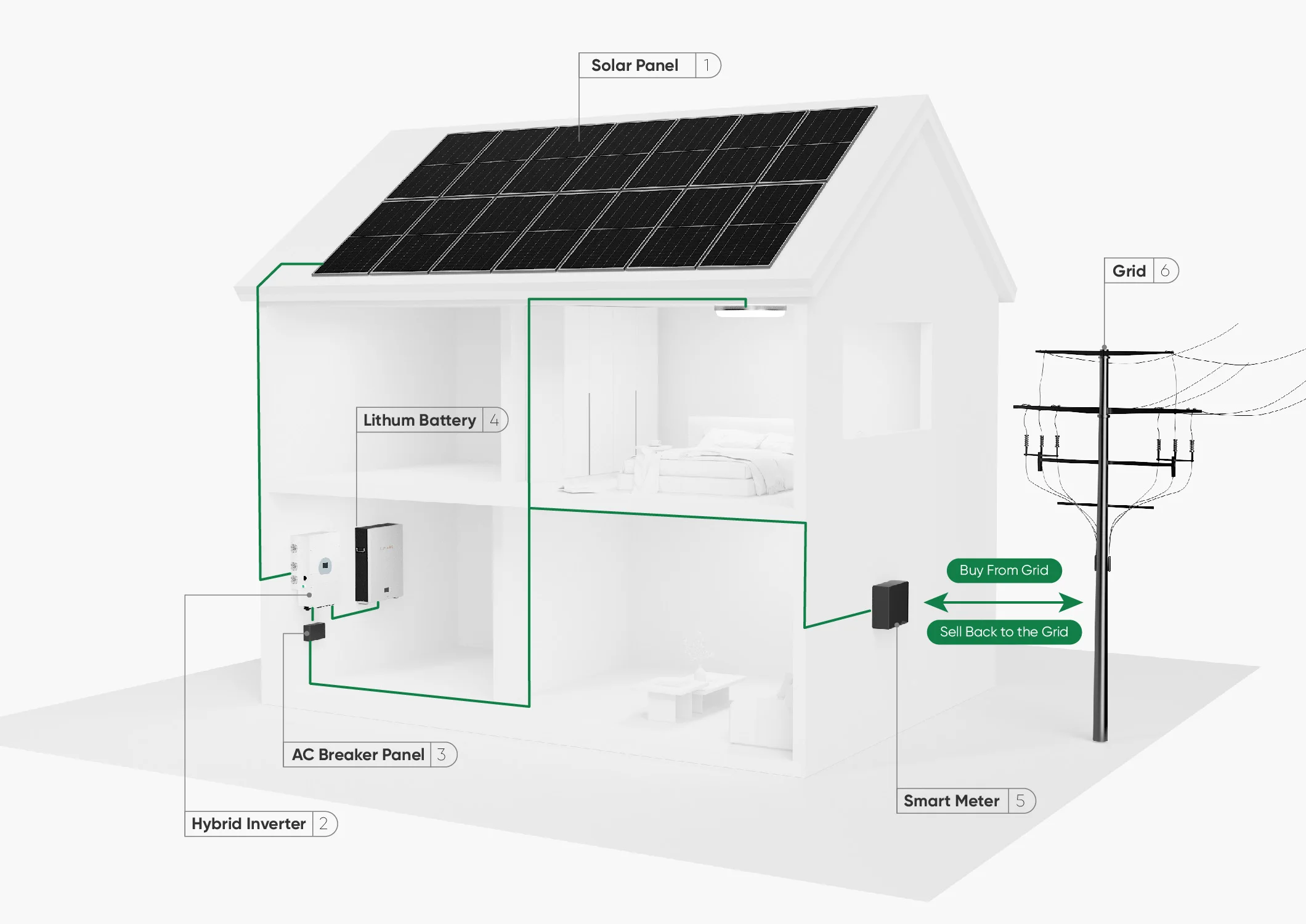

How it works

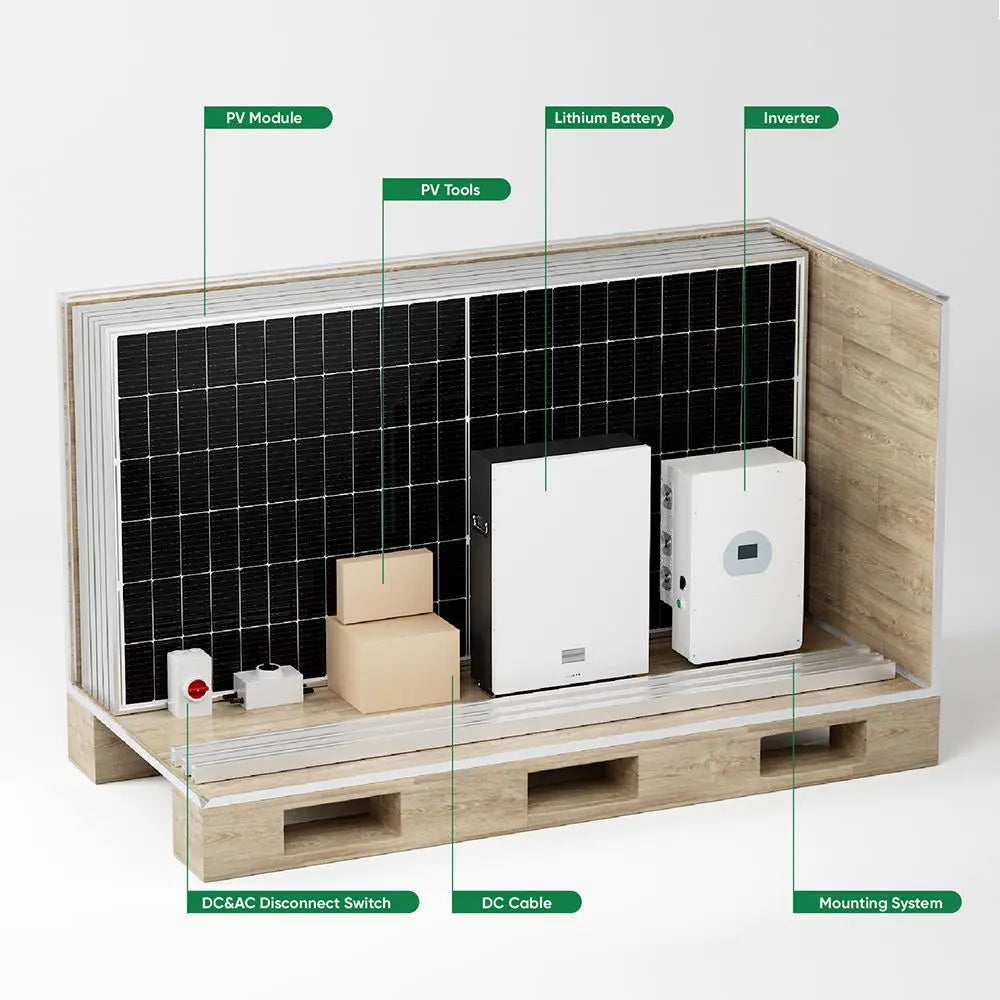

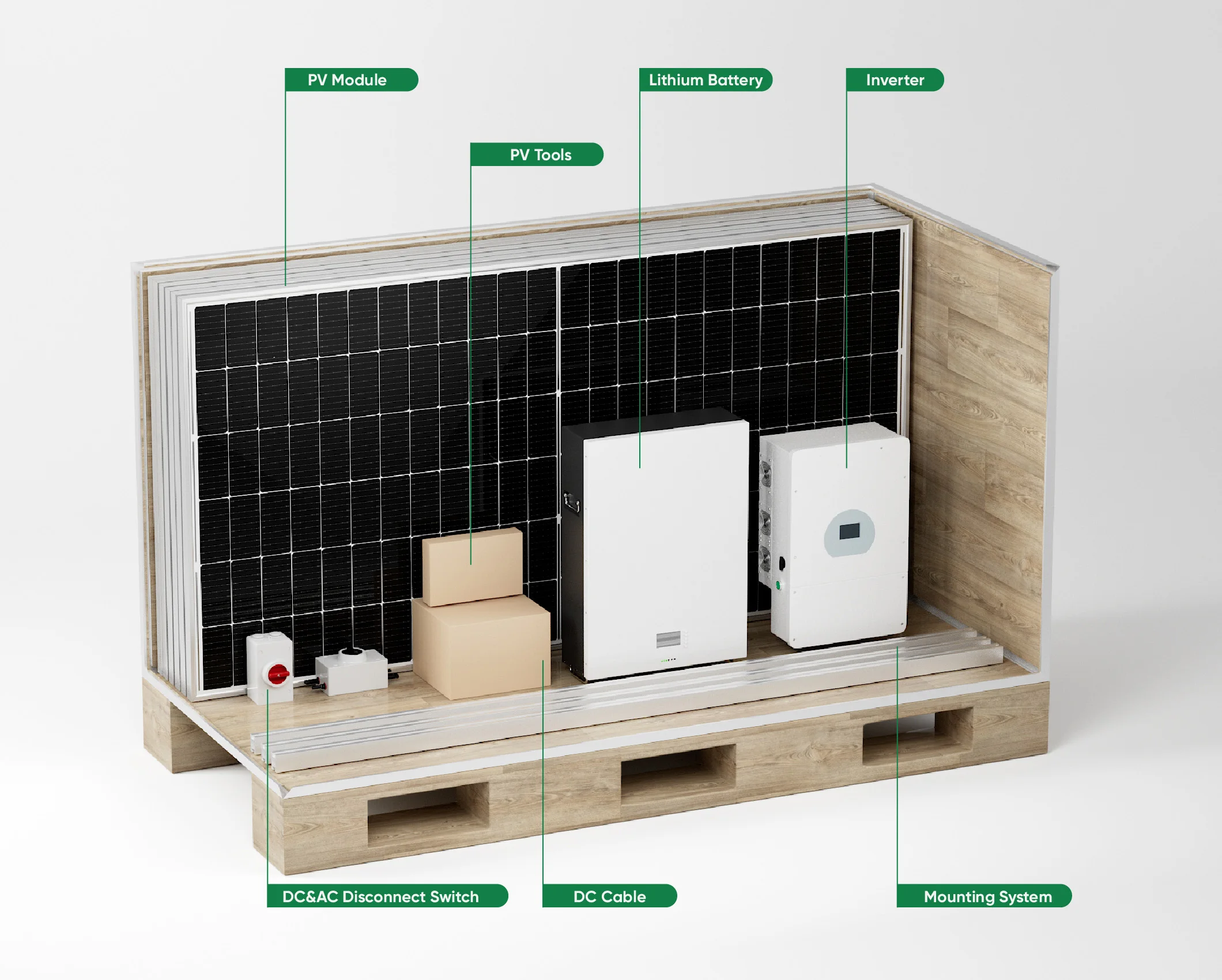

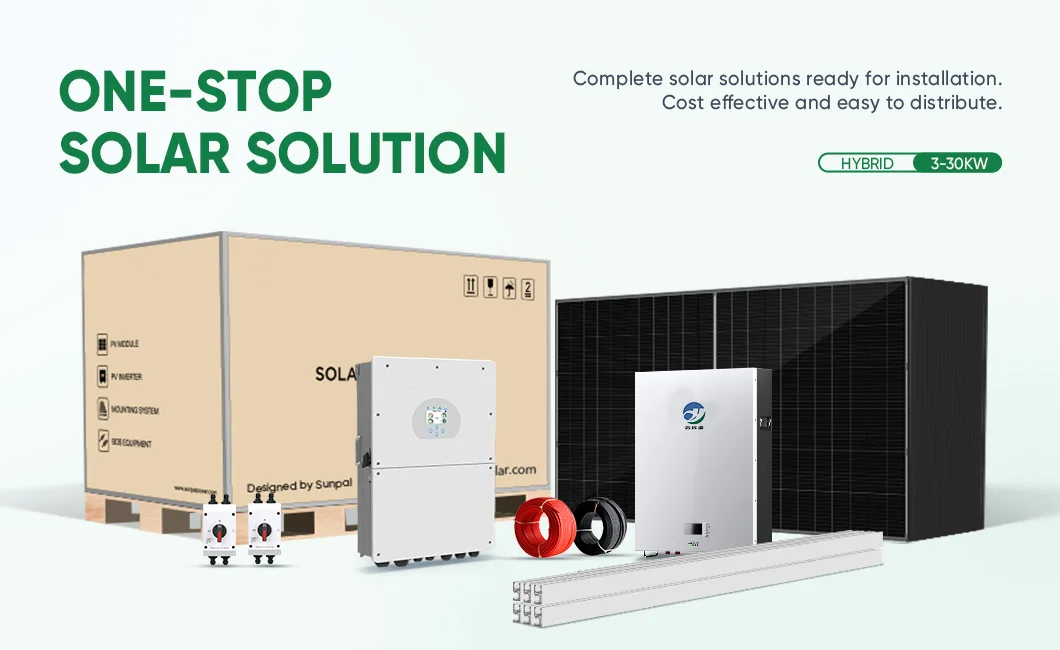

What's included:

Model	3KW-HY	5KW-HY	10KW-HY
Half Cut Mono 550W Solar Panel	6 Pieces	10 Pieces	20 Pieces
DC Disconnect Switch	1 Piece	2 Piece	3 Piece
Hybrid Inverter	XB-3K-SG04LP1-EU	XB-5K-SG03LP1-EU	XB-10K-SG04LP3-EU
Wall Mounted LiFePo4 Battery	5Kwh	5Kwh	10Kwh
DC Cable 4mm2	100 meter	200 meter	400 meter
AC Disconnect Switch	1 Piece	1 Piece	1 Piece
MC4 Connector	10 Pairs	10 Pairs	10 Pairs
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	1 Set

Model	15KW-HY	20KW-HY	30KW-HY
Half Cut Mono 550W Solar Panel	30 Pieces	42 Pieces	63 Pieces
DC Disconnect Switch	4 Piece	6 Piece	9 Piece
Hybrid Inverter	XB-5K-SG04LP1-EU 3pcs	XB-10K-SG03LP1-EU 2pcs	XB-10K-SG04LP3-EU 3pcs
Wall Mounted LiFePo4 Battery	15Kwh	20Kwh	30Kwh
DC Cable 4mm2	600 meter	800 meter	1000 meter
AC Disconnect Switch	1 Piece	1 Piece	1 Piece
MC4 Connector	20 Pairs	20 Pairs	20 Pairs
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	1 Set

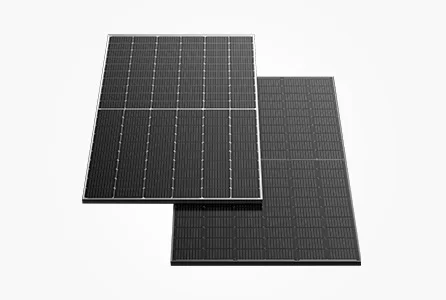

Half Cut Mono 550W Solar Panel

Peak Power Watts: 550W
Maximum Power Voltage: 42.06V Maximum Power Current: 12.84A Open Circuit Voltage: 49.75V Short Circuit Current: 13.63A
Dimensions:2279x1134x35mm Weight:26.9 kg

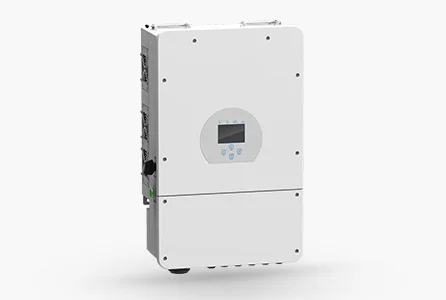

Hybrid Solar Inverter

48V low voltage battery, transformer isolation design.
6 time periods for battery charging and discharging.
Max.charging/discharging current of 240A Max.10pcs parallel
DC couple and AC couple to retrofit existing solar system

Monitoring System

Open station supports one-click installation and registration Problem support one-click dispatch and navigation
Safe operation, traceable logs, etc
Support full lifecycle data storage to ensure data security and reliability

Wall Mounted LiFePo4 Battery

15-20 years design life. Up to 6000 + cycle Ilfe
Wall mount or ground stack brick, simply connecting to inverter
Battery module is scalable for any larger storage system.
Battery modular built in high quality BMS. Protect battery cells all the way.
Lithium iron phosphate battery cell, stay safe with battery storage at home.

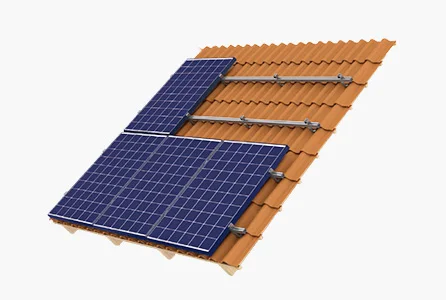

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 OptionalRated Voltage:600VDC/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years

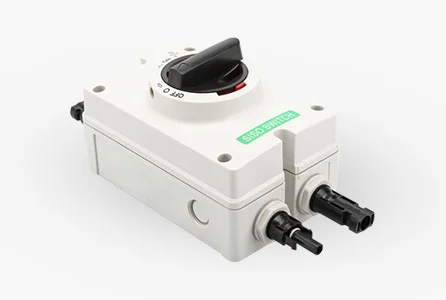

DC & AC Disconnect Switch

IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A

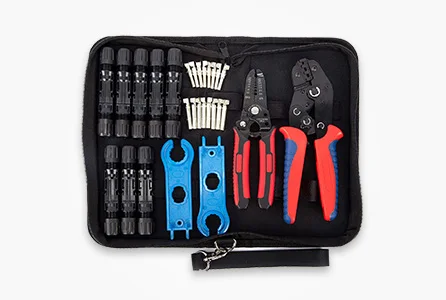

PV Tools

Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool

Product packing

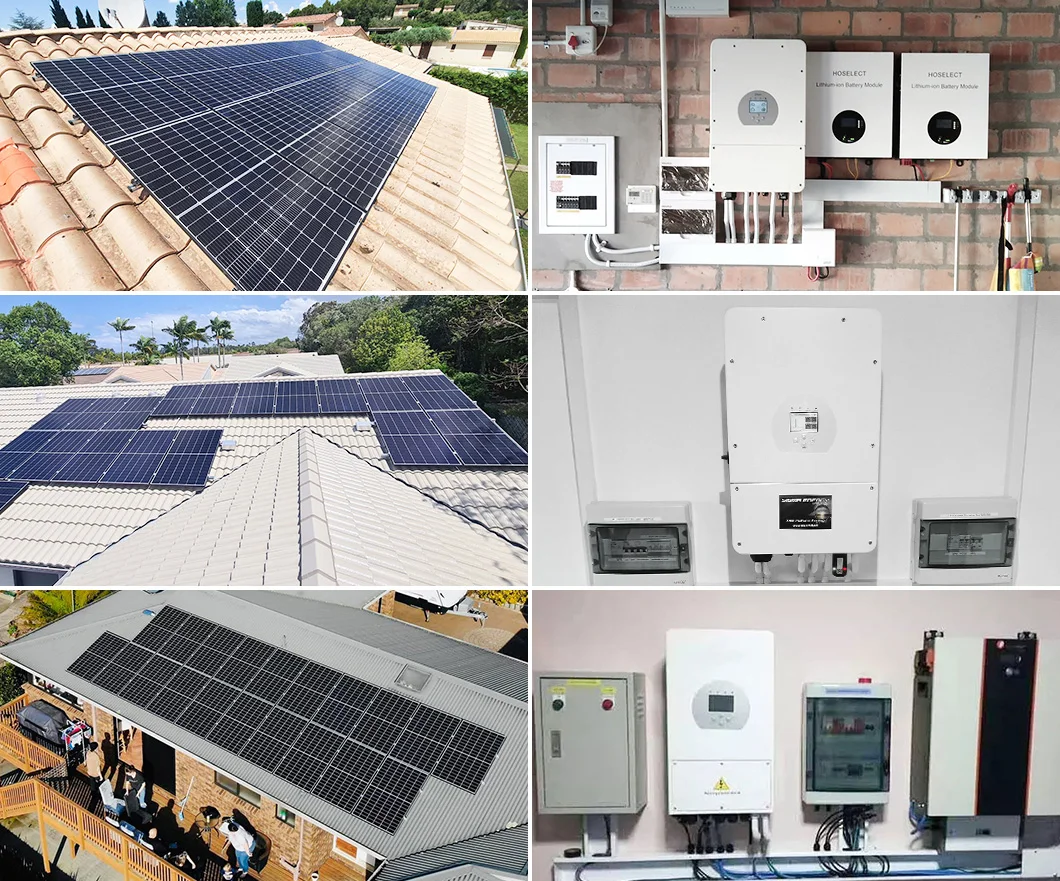

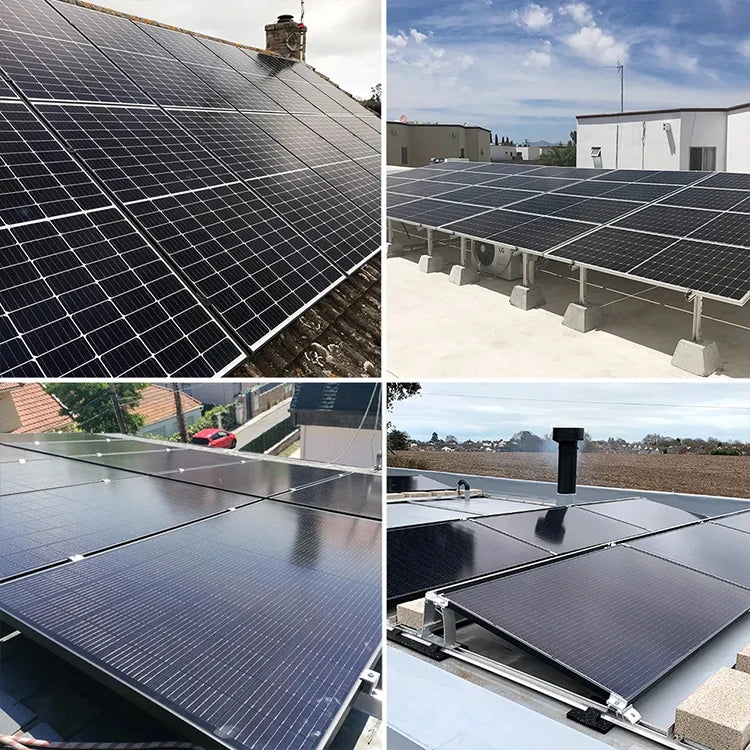

Project cases
